Clinical Applications
1. Orthopedics: Fracture reduction, spinal fusion, joint replacements
2. Surgery: Foreign body removal, pacemaker implantation
3. Interventional Radiology: Angiography, catheter placements
4. Pain Management: Nerve blocks, epidural injections
5. Gynecology: Fallopian tube procedures
Why Choose HXNOVA-P?
– Real-Time Imaging – 30 fps detector for dynamic procedures
– Dose Efficiency – Pulsed fluoroscopy + auto-dose management
– Unmatched Mobility- Motorized adjustments + compact footprint
– Versatile Workflow – Supports OR, ER, and outpatient settings

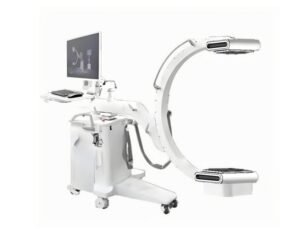

The HXNOVA-P Mobile C-arm System is a high-frequency, fully digital imaging solution designed for orthopedic surgeries, interventional radiology, pain management, and trauma care. Combining a dynamic flat panel detector (30 fps), 5.6kW high-voltage generator, and ergonomic C-arm design, it delivers real-time, high-resolution imaging with low radiation dose.
Product Overview
The HXNOVA-P Mobile C-arm System is a high-frequency, fully digital imaging solution designed for orthopedic surgeries, interventional radiology, pain management, and trauma care.
Combining a dynamic flat panel detector (30 fps), 5.6kW high-voltage generator, and ergonomic C-arm design, it delivers real-time, high-resolution imaging with low radiation dose. Ideal for operating rooms, emergency departments, and specialty clinics.
1. Superior Imaging Performance
-Dynamic Flat Panel Detector:
30 fps frame rate** for real-time guidance
1024×1024 matrix** (200µm pixel pitch) | **2.5 LP/mm resolution
-16-bit grayscale for enhanced soft-tissue contrast
– Three Acquisition Modes:
Continuous fluoroscopy (0.5-5mA)
Pulsed fluoroscopy (10-30mA @ 1-30 fps)
High-resolution “point film” capture
2. High-Frequency Generator & Dose Control
5kW Output** | 40-125kV | 10-100mA
– Precision mAs Range: 0.1-200mAs
– Auto-dose optimization reduces patient/operator exposure
3. Ergonomic C-arm Design
– Fully Balanced Articulation: Locks at any position
Motorized Vertical Movement (>400mm) + Manual Adjustments:
Horizontal shift (>200mm)
Rotation (±200°)
Swing (±12.5°)
650mm Arc Depth | 1000mm SID
4. Specialized Components
– Aluminum Grid (100:1 ratio) – Minimizes scatter
Dual-Focus X-ray Tube (0.3/0.6mm) – Balances detail vs. dose
Electric Collimator – Precise field control
